Wood Working Machinery

CNC Router

A CNC wood router is a numerical control that creates objects from wood. Parts of a project can be designed in the computer with CAD/CAM program, and then cut automatically using a router produce a finished part.
The CNC router works like a printer. Work is composed on a computer and then the design or drawing is sent to the CNC router for the hard copy. This outputs a 3 dimensional copy of the work. The CNC router uses a cutting tool instead of an inkjet. The cutting tool is generally a router but other cutters can be used as well.
The CNC works on the cartesian coordinate system X,Y,Z for 3d motion control. CNC stands for computer nemerical control. This gives the computer aa printer like ability to robotic ducation , and production work.

A CNC wood router uses CNC(Computer Numerical Control) and is similar to a metal CNC mill with the following differences.

• The wood router typically spins faster-with a range of 13000 to 24000 RPM
• Professional quality machines frequently use surface facing tools up to 3'' in diameter or more, and spindle power from 5 to 15 horsepower.Machine capable of routing heavy material use at over a thousand inches per minute are common.
• Some machines use similar tool holders MK2(Morse tapper #2 on older machines)ISO-63 has begun to supplant the ISO-30 as the rapid change standard in recent years.
• A wood router is controlled in the same way as a metal mill but there is a lot of CAm and CAD software like ArtCAM, MasterCAM,BobCAD,AlphaCAM,WoodWop,AstroCAM and FeatureCAM specially for wood routers. Wood routers are frequently used to machine other soft materials such as plastics at high speed.

Pressing Machine-

Pressing Machine used for press veneer on surface of MDF or similar board.

Max Boards size -1370*2700*42mm

Max Total thrust - 500t

Pressure of hydraulic -210/240kg/cm2

Max,Platen Opening-100/80 mm

Oil Cylinder - 250*4 pcs.

Hydraulic Motor Power - 11 kw

Hot oil pump power 2.2 kw

Heating pipe power - 27/36 kw

over dimension3800*1980*3900mm

Net weight - 19000/31000 kg

Packing - soft packing

layers available- 5 layers, 10 layers,

pressure available - 500T



Edge Banding Machine-

Description -
Heavy duty steel fabricated frame suitable braced in load carrying areas, and the frame is heart trated prior to machining.
Hot melt glue pot application unit with heated infeed fence , incorporating a teflon lined glue pot for ease of cleaning, and a glue pot stand -by temperature switch. edge strip application unit with pneumatic guillotine. Four roller pressure unit with pneumatic pressure. End timing unit - cut off saws with angle adjustment, running on german/rexorth linear guides for accuracy and long life. Main top & bottom trimming unit titable to 45 degree wuth 2mm radius cutter, incorporating 18000 rpm european manufactured high frequency motors. Two unit corner rounding station with two motorized cutter units to travel around curved ends of panels. Top and bottom radius scraper unit to fine finish PVC edging. Top and bottom buffing unit.

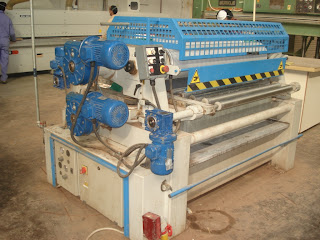

Automatic Roller Gluing Machine-

Water glue roll laminator machine
film lamination .
This laminating machine is the perfect machine to protect and enhance printings in printing industry Chromed stainless steel roller with high efficiency heating and high pressure Pneumatic pressure with easy adjustment step less speed adjustment control.High efficient ult rared heating,Foot panel control,Film slitter,Handy rewinding kit.






Automatic Panel Saw-

Feature -

Accurate Ripping operation-

The saw carriage runs with bronze wheel, which is cnc lathe precision machined for accurate concentrically productivity fine smooth surface cut, the guide rods, hard chrome plated, provide rigid support for saw carriage, the ripping accuracy is guaranteed.The saw carriage feed is driven by rugged wire, Fitted with a shock absorbing cylinder to prevent bumbling while it travels to the left side , The scoring blade may be laterally adjusted for a burr free cut or vertically adjusted for proper depth of cut and to compensate for blade wear. The floating tables are drilled with holes throughout the table areas, in which are fitted steel balls, powerful blowers supply air into the holes. Forcing the steel balls to protrude above the table surface , creating a floating effect, this allows the panels to in feed effortlessly , the table surface are covered with Bakelite to prevent scratching of the panel during feeding.
Calibration Sander Machine-

Description - 2Belts 1300 mm working width with provision for a 3rd unit.
1 st unit : Calibrating drum steel rubber covered
Diam.240 mm Hardness 80 shores-pneumatic inclusion/exclusion of unit- Motor 30 HP.
2 nd Unit : Sanding drum steel rubber covered
Diam - 240 mm , hardness 60 shores Pneumatic on/off drum
2nd motor 25 hp for unit 2 and 3
Speed variator infeed 2.5 hp for variable speed
lowering and raising electronic on 2nd and 3rd unit front and rear extension table 3+3, Electronic display for tickness setting, Voltage 415/50/3, Heavy duty rubberised infeed carpet,
Belts tracking with pneumatic pistons and micro switches, Super ts control, Sanding belts dimensions 2620 x 1380 mm. Pneumatic carpet centering,
1St pressure roller with anti-kick back device. Air blowers for belt cleaning,


Automatic Moulder Machine-

The machine is equipped with two full automatic and high-efficiency injectors, compined with performance mould clamping system and PC control system, By using EVA as the raw material, the machine can produce midsole , sole and various kinds of EVA foaming products flexibly.
1.Injection System
The measuring mechanism , which adopts potentiometer detection, along with PLC and PC, can compute and control material entering precisely. With the introduction of the worm gear deceletor , co ordinated with the brake motor, the two injectors run at a high speed under the control of converter , orientation is of high accuracy.
2.Mould Clamping System:-
The two steps speedy mould opening clamping mechanism with detection device of full mould opening. Enlarging mould design size can be consistent with varied moulds flexiblity at a  high compatiblity.
3.Computer Control System.
The PLC control module works through a graphic display interface to show all monitoring information and setting conditions. material input amount, injection temperature , mould temperature , operation time, out put mould data, etc. all operation precessess can be controlled and performance on the touch screen , besides the operation instructios are easily to be learned ,


Sliding Table Saw-

Features & Advantages-

• The first cut is the final cut, improving the results of subsequent machining.
• Cuts solid wood , plastics, and non-ferrous metals as perfectly as it cuts panels.
• Electric adjustment of the rise , fall and titling of the main saw blade,
• Digital tilt display in increments of 0.1
• Sliding table two position lock for the mid and end positions.
• scoring unit with new quick action manual raise and lower with manual lateral, adjustment.
• crosscut MITRE fence with two manually adjusted flip stops from 95 mm (3-3/4'') to 3200 m
• Saw unit is electronically balanced and precisely positioned to provide vibration-free running at each of three easily changed cutting speeds.
• emergency stop button, main and scoring control switches on both side of sliding table saw.

Surface Planar Machine -

The machine has circular cutter with four knives held in place by mean of wedges, The drive to the cutter block is taken from electric motor through a V-belt drive. the machine is equipped with a removable fence which travels across the table and can be set at the required angle to the table surface.






Thickness Planer Machine -

Surface planer table dimensions 1450 x 300 mm 3-knives cutter head. 70 mm cutter head , Speed rpm, 5400 fence tilting from 0 up to 45 degree contemporary opening planer table motor power: 1.5 kw Thickens Planer table dimension 500 x 300 mm max. Height of thickness 200 mm min, height of thickness 4mm max. depth of thickness 5 mm forwarding of cut thickness, 5mm forwarding speed 6,5 m/1'






Radial Arm Saw

A radial arm saw basically consists of a motor (rather like a handheld circular saw) suspended from a long arm, in a yoke , which allows multiple degrees of rotation for the motor assembly. The motor assembly connects to the overhead arm by a carriage assembly that traverses the arm length when manually pulled by the operator. All parts of this assembly may be locked when manually pulled by the operator , All parts of this assembly may be locked into particular positions are desired by the user, To achieve simple 90 degree cross cut the saw is pulled from back to front, through a slot in the fence, To make a rip cut the motor head is rotated 90 degrees and positioned outside the fence parallel to it.






Spindle Moulder Machine-


We are one of the prominent manufacturers of spindle moulder machines , these moulders are designed and developed using sophisticated technology as per the highest quality standards, we make sure that each of the machines is tested and inspected for quality, Our strict quality checking procedures help in ensuring that no defective piece is delivered to the clients.
